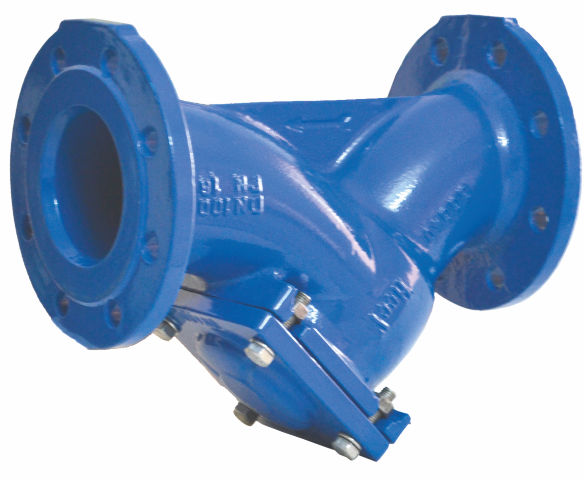

Strainer
DN 50 … 200
PN 10 & PN 16
Field of application: Fluid filtering in water supplies, water treatment, waste water, irrigation, dams, pumping stations, industries, power plants and etc. It can be used for fluids such as drinking water, waste water, oil and etc. up to 90°C.
Features:
- Flanges: according to DIN 2501
- Face to face: according to DIN 3202 – F1
- Hydrostatic test pressure: according to DIN EN 12266-1
- Corrosion protection: Completely coated with blue color (RAL 5005) electro -static epoxy powder coating according to DIN 30677-T2
Materials:
- Body and Bonnet: Ductile Cast Iron 1693 (GGG40)
- Body seat ring and Disc: Stainless steel (X20Cr13)
- Screen: Stainless steel (X20Cr13)
- Elastometric Parts: EPDM
Alternatives:
- Elastometric materials of NBR and Silicon for higher temperatures
- Drainage Plug
