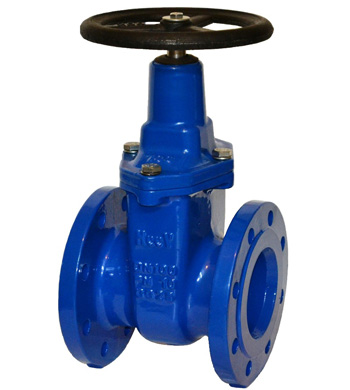

Gate Valve (PN10-F4)
DN 50 … 200
PN 10
Field of application: Opening and closing fluid flow in water supplies, water treatment, waste water, irrigation, dams, pumping stations, industries, power plants and etc. It can be used for fluids such as drinking water, waste water, oil and etc. up to 90°C.
Features:
- Design: according to DIN 3352
- Flanges: according to DIN 2501
- Face to face: according to DIN 3202 – F4
- Hydrostatic test pressure: according to DIN EN 12266-1
- Corrosion protection: Completely coated with blue color (RAL 5005) electro -static epoxy powder coating according to DIN 30677-T2
Materials:
- Body and Bonnet: Cast Iron DIN 1691 (GG25)
- Body and Gate seat rings: Bronze (Rg5 DIN 1705)
- Stem: Stainless steel (X20Cr13), single left-hand rolled thread according to DIN 103
- Elastometric Parts: EPDM
Alternatives:
- Bonnet with actuator adaptor
- Elastometric materials of NBR and Silicon for higher temperatures
- Square Cap
- Drainage Plug
